Description
Product Overview

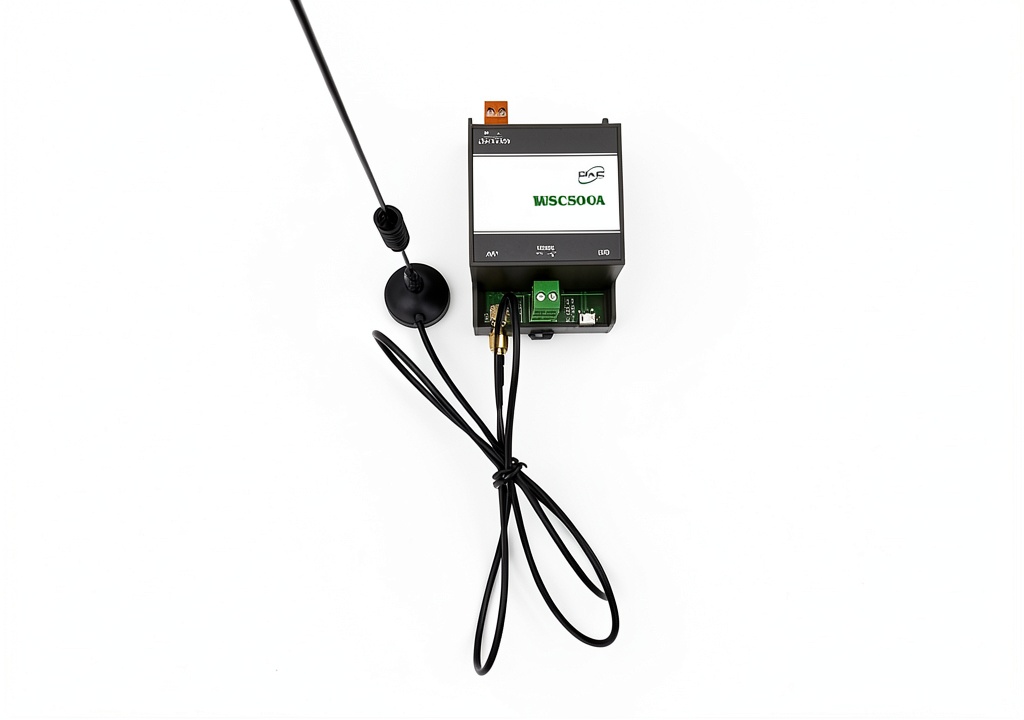

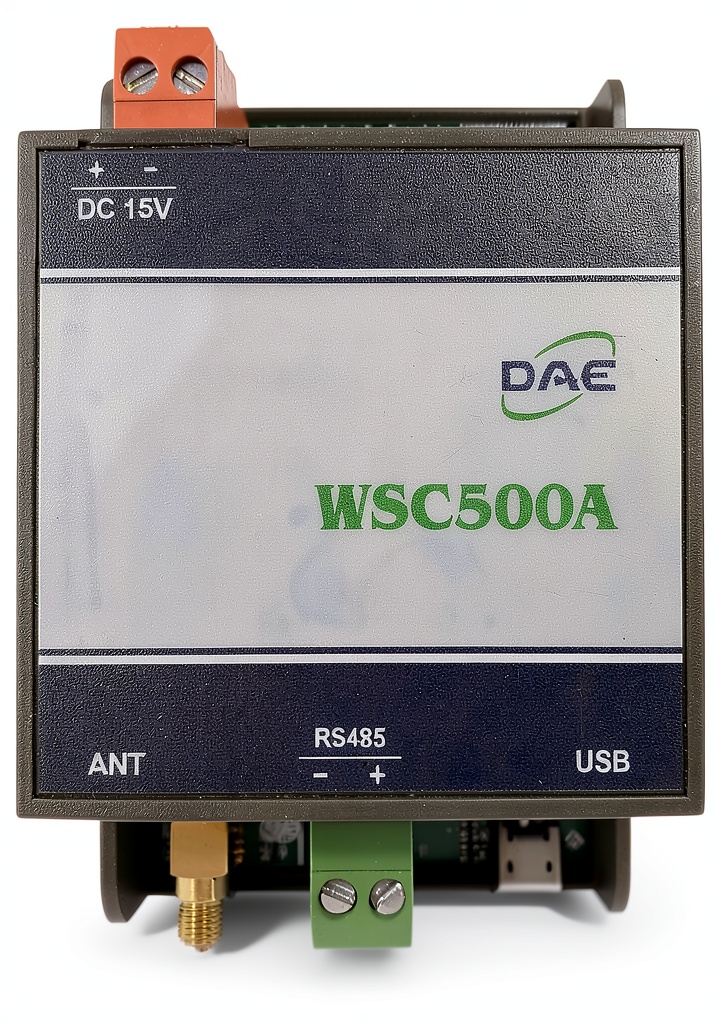

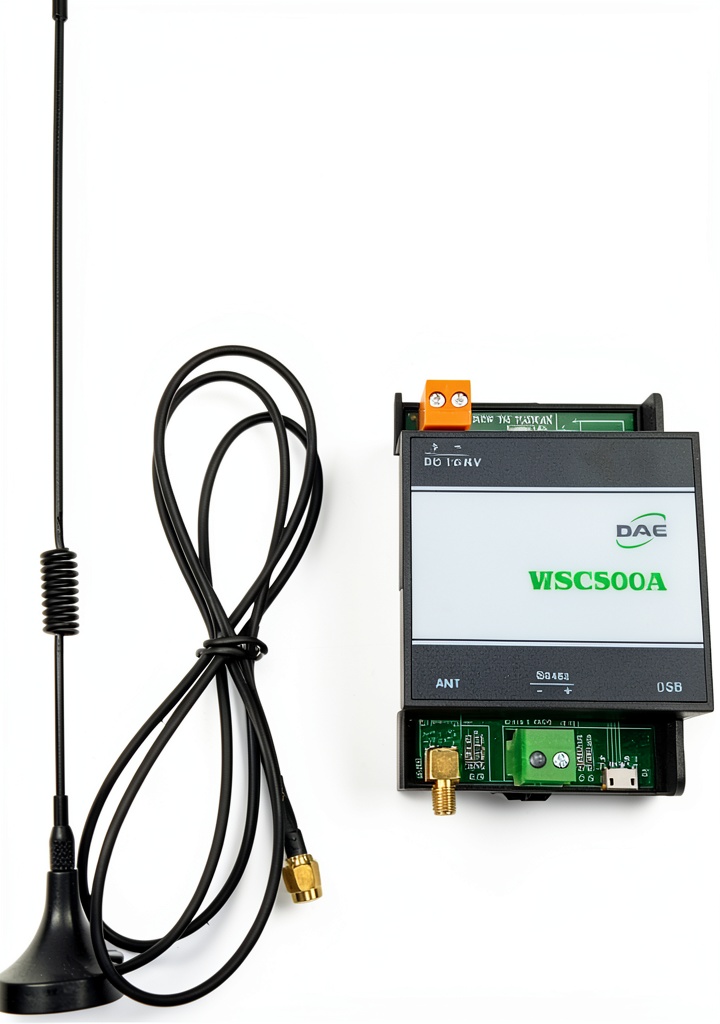

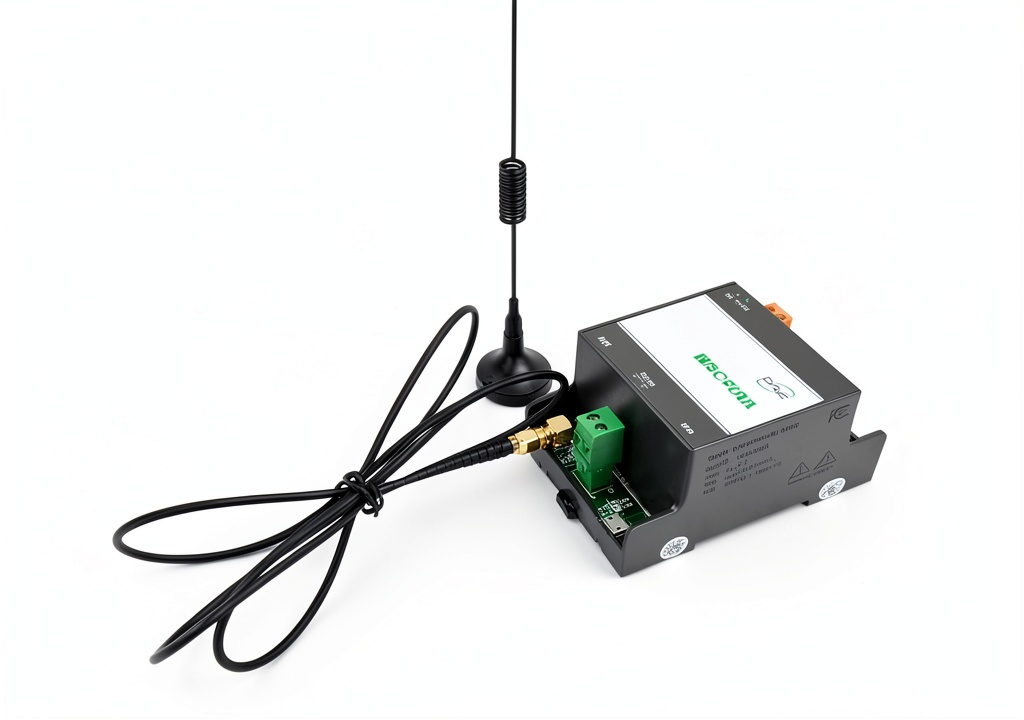

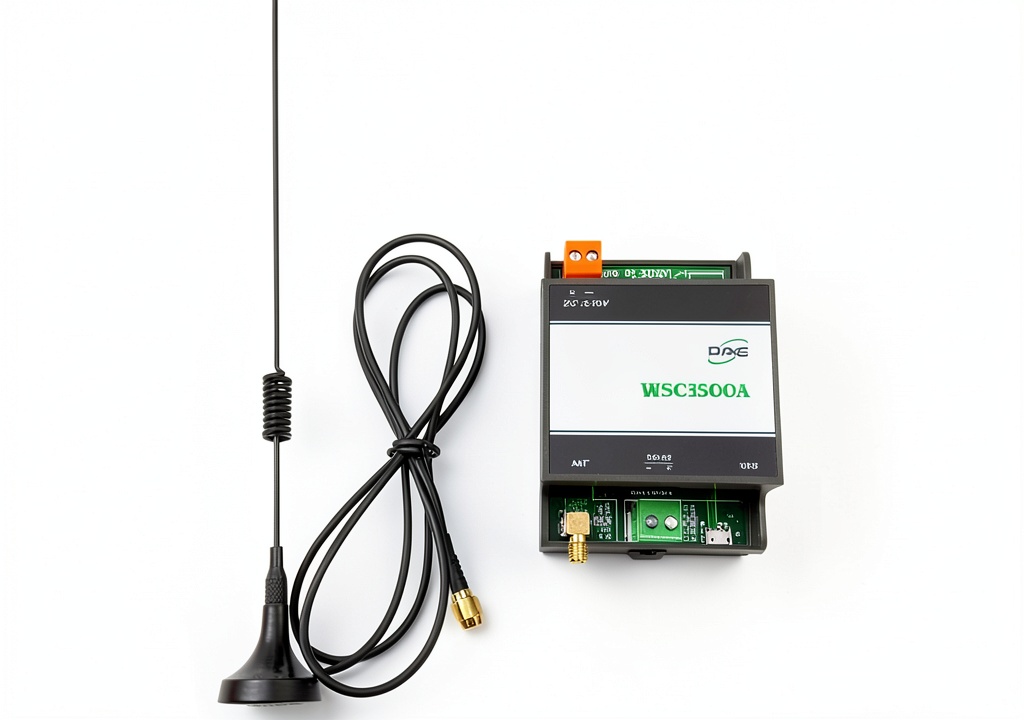

This compact DAE WSC500A RF Converter operates at 915 MHz and interfaces via RS485 to enable seamless wireless data transmission from water or electricity meters to cloud-based systems. Designed for integration with the DAE Wireless Cloud Metering Solutions, it allows remote monitoring of usage without physical wiring. The device is FCC certified (Ref. No. VTN0035A/2020) and compatible with CC2030 gateways to send data through Ethernet to the DAE server. Ideal for retrofitting older buildings or hard-to-reach locations where cabling is impractical.
Usage
Best suited for commercial and industrial applications requiring wireless metering solutions, especially in environments with limited access to wiring infrastructure. Common use cases include retrofitting existing buildings where electric meters are near panels but gateways are close to routers or network hubs. It supports both water and electricity monitoring via DAE AMR Series meters and is compatible with the CC2030 gateway for cloud-based data collection. Indoor use only; outdoor applications require the optional B1725 watertight enclosure.
Why Choose Us
DAE Controls LLC, a Minority Business, offers reliable and certified wireless solutions with proven performance in industrial settings. The WSC500A is FCC-compliant, ensuring regulatory safety for commercial deployment. Its compact 2.25 x 2.25 x 2.25 inch design allows easy installation without disrupting existing infrastructure. Built to withstand typical indoor environments and backed by DAE’s customer support team for technical assistance or troubleshooting.
Key Features
- Wireless data transmission at 915 MHz enables flexible meter-to-gateway connectivity without physical cabling.
- FCC certified for safe and compliant operation in commercial and industrial environments.
- RS485 output interface ensures compatibility with DAE CC2030 gateways and AMR Series meters.
- Compact, lightweight design (2.25 x 2.25 x 2.25 inches) for easy installation in tight spaces.
- DAE Controls LLC provides technical support and after-sales service to ensure seamless integration and operation.
FAQ
Can I use this converter with existing building wiring?
No, the WSC500A is designed for wireless applications. It eliminates the need to run cables between meters and gateways, making it ideal for retrofitting older buildings or hard-to-reach locations.
What types of meters are compatible with this converter?
The WSC500A works with DAE electrical meters and AMR Series meters. It can collect kWh data or water usage wirelessly and send it to the cloud via Ethernet through a CC2030 gateway.
Is outdoor use supported?
Indoor use only by default. For outdoor applications, you must purchase the optional DAE B1725 watertight enclosure for protection against environmental elements.
What is the FCC certification reference number?
The device is FCC certified with reference number VTN0035A/2020. This ensures compliance with U.S. regulatory standards for wireless communication devices.
How does it integrate with cloud systems?
When paired with a CC2030 gateway, the WSC500A sends meter data over Ethernet to the DAE Cloud Metering System. Users can access real-time or historical usage reports via PC or smartphone.
